If you've ever designed a board only to find it failing after a few thermal cycles, you already know the pain. The PCB material you choose determines everything—signal integrity, mechanical reliability, thermal performance, and ultimately whether your product survives in the field or ends up on a rework bench. Choosing the right substrate from the dozens of available options is one of the most consequential decisions in PCB development.
Why PCB Material Selection Matters
Substrate material affects nearly every aspect of board performance. Here's what changes when you switch materials:
| Performance Area | Impact of Material Choice |
|---|---|
| Signal Integrity | Dielectric constant (Dk) and dissipation factor (Df) determine signal loss at high frequencies |
| Thermal Reliability | Glass transition temperature (Tg) and CTE control survival through soldering and thermal cycling |
| Mechanical Strength | Flexural modulus and peel strength determine board rigidity and pad adhesion |
| Moisture Resistance | Moisture absorption percentage affects insulation resistance in humid environments |
| Manufacturing Yield | Material processability directly impacts drilling, plating, and lamination success |
| Cost Per Board | Material cost varies by 3× to 20× between standard and specialty substrates |
A material that works perfectly for a Bluetooth IoT sensor may fail catastrophically in an automotive ECU exposed to 125°C underhood temperatures. Understanding the material properties and how they interact with your design constraints is critical to getting it right the first time.
Common PCB Material Types

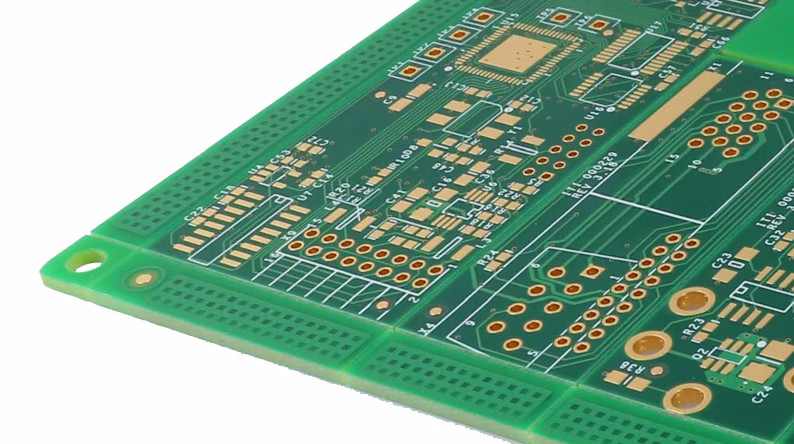

FR-4
FR-4 is a woven fiberglass-reinforced epoxy laminate that accounts for over 90% of PCBs manufactured worldwide. It offers a strong balance of electrical insulation, mechanical strength, and cost-effectiveness.
FR-4 comes in several grades defined by glass transition temperature (Tg), which determines the temperature at which the material begins to soften and lose mechanical integrity.
| FR-4 Grade | Tg Range | Typical Applications |
|---|---|---|
| Standard FR-4 | 130–140°C | Low-cost consumer goods, single or double reflow processes |
| Medium-Tg | 150–160°C | General industrial, standard lead-free soldering |
| High-Tg | 170–180°C | High-reliability, thick boards (>2mm), servers, automotive |
| Very High-Tg | 200°C+ | Harsh environments, aerospace, downhole drilling |
Standard FR-4 is typically sufficient for most consumer electronics and general-purpose designs. High-Tg becomes necessary when boards undergo multiple lead-free reflow cycles or operate in elevated temperature environments.
When to use FR-4: General-purpose digital and analog designs, frequencies below 1–2 GHz, cost-sensitive projects, prototype runs.
When NOT to use FR-4: High-frequency RF (>2 GHz), extreme temperature environments, high-power thermal management, applications requiring tight Dk tolerance.
High-Frequency / RF Laminates
For designs operating above 1–2 GHz, FR-4's dielectric losses become unacceptable. High-frequency laminates use specialized resin systems and reinforcements to provide stable, low-loss electrical properties.
| Material | Dielectric Constant (Dk) | Dissipation Factor (Df) | Best For |
|---|---|---|---|
| Rogers RO4350B | 3.48 ± 0.05 | 0.0037 | 5G, automotive radar, base station |
| Rogers RO4003C | 3.38 ± 0.05 | 0.0027 | General RF, LNA, filter networks |
| RT/duroid 5880 | 2.20 ± 0.02 | 0.0009 | Satellite, mmWave, ultra-low loss |
| Taconic RF-35 | 3.50 ± 0.10 | 0.0028 | Cost-effective RF, antenna |
| Arlon 25N | 3.38 ± 0.05 | 0.0025 | Broadband RF, instrumentation |
These materials cost 4× to 10× more than standard FR-4, so engineers often use hybrid stackups—RF laminates on signal layers and FR-4 for the rest—to balance performance and cost.
When to use RF laminates: Microwave and millimeter-wave circuits, high-speed digital (>10 Gbps), sensitive RF front-ends, impedance-critical designs.
Aluminum / Metal-Core PCB (MCPCB)
Aluminum PCBs use a thin dielectric layer bonded to an aluminum or copper base plate. The metal core conducts heat away from power components far more effectively than FR-4.
Typical thermal conductivity values:
| Material | Thermal Conductivity (W/m·K) |
|---|---|
| Standard FR-4 | 0.3–0.4 |
| High-Tg FR-4 | 0.5–0.7 |
| Aluminum MCPCB | 1.0–3.0 |
| Ceramic-filled MCPCB | 3.0–9.0 |
Primary applications: High-power LED lighting, motor drivers, power converters, automotive headlamps, switch-mode power supplies.
The trade-off is that MCPCBs cannot support plated through-holes in the metal core area, which limits routing density and layer count to 1–2 layers typically.
Polyimide (Flex / Rigid-Flex)
Polyimide substrates offer exceptional thermal stability (Tg >300°C) and mechanical flexibility, making them the standard material for flexible and rigid-flex PCBs.
| Property | Polyimide | FR-4 |
|---|---|---|
| Continuous Operating Temp | 250–300°C | 130–180°C |
| Flexural Capability | Bendable | Rigid |
| Moisture Absorption | 2.5–3.0% | 0.1–0.15% |
| Relative Cost | 3–5× FR-4 | Baseline |
Polyimide is essential for applications requiring dynamic flexing, such as foldable devices, camera modules, and robotic joints. However, it absorbs significantly more moisture than FR-4, which must be accounted for in the assembly process—baking before reflow is mandatory.
Key Material Properties Explained
Understanding these properties is essential for making informed material selections.
Glass Transition Temperature (Tg)
Tg is the temperature at which the resin transitions from a rigid, glass-like state to a rubbery, softened state. Below Tg, the material maintains its mechanical and electrical integrity. Above Tg, the coefficient of thermal expansion increases dramatically (3–5×), which can stress plated through-holes and cause barrel cracking.
Rule of thumb: Select a material with Tg at least 25°C above your maximum operating and assembly temperatures.
Dielectric Constant (Dk) and Dissipation Factor (Df)
Dk determines signal propagation speed and impedance. A stable, consistent Dk across frequency and temperature is critical for high-speed and RF designs.
Df (also called loss tangent) measures how much signal energy is lost as heat in the dielectric. Lower Df means less signal attenuation.
| Application | Dk Requirement | Df Requirement |
|---|---|---|
| Digital logic (<100 MHz) | 3.5–5.0 (broad tolerance OK) | <0.025 |
| High-speed digital (>1 Gbps) | ±5% tolerance or better | <0.010 |
| RF / Microwave | ±2% tolerance | <0.005 |
| Millimeter-wave (30 GHz+) | ±1% tolerance | <0.002 |
Coefficient of Thermal Expansion (CTE)
CTE describes how much the material expands when heated. The Z-axis (through-thickness) CTE is the most critical value because via barrels are constrained in this direction.
High Z-axis CTE mismatch between the laminate and copper plating is a leading cause of via barrel cracks during thermal cycling and lead-free soldering.
Target values: Z-axis CTE below Tg should be 40–60 ppm/°C for standard FR-4. High-reliability materials target 30–50 ppm/°C.
UL 94 Flammability Rating
Most electronics require UL 94 V-0 rated materials, which self-extinguish within 10 seconds of flame removal. This is the standard for consumer, industrial, automotive, and medical applications.
Common Material Selection Mistakes
Over-specifying RF Materials
Using Rogers RO4350B for a 500 MHz digital design is like buying a racing bicycle for a trip to the grocery store. It works, but you're paying 4× more than necessary. FR-4 performs adequately below 1–2 GHz for most applications.
Fix: Always check whether your design actually needs tight Dk tolerance. If your highest frequency component runs at 200 MHz and you're not doing impedance-critical routing, standard FR-4 will work fine.
Ignoring CTE Mismatch in Hybrid Stackups
Combining FR-4 with Rogers or polyimide in the same stackup creates CTE mismatches that can cause delamination or via cracking during thermal cycling. Each material expands at a different rate, stressing the interfaces between layers.
Fix: Work with your fabricator to understand available hybrid material combinations and verified bonding schedules. Not all material combinations are reliable.
Neglecting Moisture Sensitivity
Polyimide absorbs up to 3% moisture, while FR-4 absorbs only 0.1%. If you specify polyimide for a flex section without accounting for moisture in your assembly process, you risk delamination during reflow soldering.
Fix: Specify pre-bake requirements for moisture-sensitive materials. IPC-J-STD-033 provides guidelines for handling moisture-sensitive components and substrates.
Specifying Unavailable Material Grades
Many exotic laminates have minimum order quantities at distributors or long lead times. If you specify a rare IPC-4101 slash sheet without checking availability, you may delay your project by weeks.
Fix: Discuss material availability with your circuit board fabrication partner early in the design phase. A fab with broad material sourcing experience and robust circuit board fabrication capabilities can suggest equivalent or similar materials that are in stock. For a comprehensive overview of available laminates, see our complete guide to PCB material selection.
Cost Comparison by Material Type
Material cost is typically 10–20% of total PCB fabrication cost, but the choice of substrate has a significant impact on overall board price.
| Material | Relative Cost (vs FR-4) | Typical Lead Time |
|---|---|---|
| Standard FR-4 | 1.0× (baseline) | In stock |
| High-Tg FR-4 | 1.2–1.5× | In stock |
| Halogen-free FR-4 | 1.3–1.6× | 1–2 weeks |
| CEM-1 / CEM-3 | 0.7–0.9× | In stock |
| Rogers RO4350B | 4–6× | 1–3 weeks |
| Rogers RT/duroid 5880 | 8–12× | 2–4 weeks |
| Aluminum MCPCB | 2–4× | 1–2 weeks |
| Polyimide (flex) | 3–5× | 1–2 weeks |
Cost-saving tip: For mixed-material designs, use the expensive laminate only on the signal layers that require it. A 4-layer hybrid stackup with Rogers on the outer layers and FR-4 core can save 40–60% compared to an all-Rogers board.
Making the Right Choice
The right PCB material depends on your specific combination of electrical, thermal, mechanical, and cost requirements. Here's a quick summary of which material to choose based on your dominant design constraint:
| If Your Priority Is… | Start With… |
|---|---|
| Lowest cost | Standard FR-4 |
| High-frequency / low loss | Rogers RO4350B or RO4003C |
| Extreme temperature | High-Tg FR-4 or Polyimide |
| Heat dissipation | Aluminum MCPCB |
| Flexible form factor | Polyimide |
| Regulated industry (medical/auto/aero) | High-Tg FR-4 with appropriate certifications |
| High-speed digital (>10 Gbps) | Low-loss RF laminates (RO4003C, Megtron 6) |
Frequently Asked Questions
What is the most commonly used PCB material?
FR-4 is by far the most common PCB material, used in over 90% of all PCBs manufactured. It offers a good balance of electrical insulation, mechanical strength, and cost-effectiveness for frequencies below 1–2 GHz.
How do I choose between FR-4 and Rogers materials?
Choose FR-4 for general-purpose designs below 1–2 GHz, non-critical impedance control, and cost-sensitive projects. Choose Rogers or other RF laminates when your design operates above 2 GHz, requires tight Dk tolerance (±2% or better), or needs low loss tangent for signal integrity at high frequencies.
What does Tg mean in PCB materials?
Tg (glass transition temperature) is the temperature at which the PCB substrate begins to soften from a rigid, glass-like state to a rubbery state. Below Tg, the material maintains its mechanical and electrical properties. Above Tg, thermal expansion increases dramatically, which can stress plated through-holes.
Is high-Tg FR-4 always better than standard FR-4?
Not necessarily. High-Tg FR-4 costs 20–50% more than standard FR-4 and offers no advantage in designs that never experience elevated temperatures. Use high-Tg only when your board will undergo multiple lead-free reflow cycles or operate above 100°C continuously.
Can I use aluminum PCB for RF designs?
Aluminum MCPCBs are not suitable for RF or high-speed designs. The thick dielectric layer required for electrical isolation limits impedance control and introduces high losses at frequency. Aluminum-core boards are optimized for thermal management, not signal integrity.
What materials are used for flexible PCBs?
Polyimide (typically Kapton) is the standard material for flexible and rigid-flex PCBs. It offers excellent thermal stability (Tg >300°C) and mechanical flexibility. PET and PEN are used in low-cost consumer applications but cannot withstand soldering temperatures.
How do I verify my chosen material meets regulatory requirements?
Check the material's UL 94 flammability rating (V-0 is standard for most electronics), RoHS compliance status, and any industry-specific requirements (IATF 16949 for automotive, ISO 13485 for medical). Request the laminate manufacturer's certification data sheet from your fabricator.
What is a hybrid PCB stackup?
A hybrid stackup uses two or more different laminate materials in the same board. The most common example is Rogers RO4350B on the outer (RF) signal layers with FR-4 cores for the remaining layers. This approach balances high-frequency performance with cost control.
Conclusion
Selecting the right PCB material doesn't have to be overwhelming. Start with FR-4 for general-purpose designs, and only move to specialty materials when your specific requirements demand it—RF performance above 2 GHz, extreme temperatures, thermal management, or flex applications.
